Fine details are the true test of UV printing precision. A UV printer may produce impressive large graphics, but can it reproduce tiny text, intricate lines, detailed logos, and high-density QR codes with consistent clarity?
When printing small text, complex logos, product serial numbers, or dense QR codes, several factors can affect the final result, including printhead performance, motion control, ink delivery stability, substrate compatibility, and routine maintenance.
Hanrun Paper's UV printing solutions are designed to reproduce fine lines, sharp edges, and intricate patterns with high precision. With the right printer configuration and compatible consumables, businesses can achieve clearer small text, more consistent line definition, and detailed graphics for premium labels, precision marking, and customized products.
So, why do UV printers sometimes produce blurry fine lines, merged text, or QR codes that are difficult to scan? And what should you look for when choosing a UV printer for high-precision applications?
1. Printhead Performance: The Foundation of Fine Detail Reproduction
Printhead performance directly affects how accurately a UV printer reproduces small text, thin lines, and intricate graphics. Key factors include droplet size, nozzle performance, and the printer's effective resolution.
In general, smaller ink droplets can help reproduce finer details, while higher resolution can improve the reproduction of intricate patterns. However, a higher advertised DPI does not automatically guarantee better print quality. The final result also depends on printhead condition, ink characteristics, print settings, mechanical accuracy, and the printing substrate.
Epson I3200-U1 and Ricoh Gen6 (G6) printheads are designed for professional printing applications that require precise ink deposition and detailed image reproduction.
The Hanrun Paper UV-H9060 can be configured with either an Epson I3200-U1 or a Ricoh G6 printhead, offering flexibility for different production requirements. The UV-H2513 supports configurations with up to eight Ricoh G6 printheads, helping businesses balance print quality and production capacity.
Accurate motion control is essential for consistent UV printing. When printing tiny text, fine lines, or dense QR codes, even slight positioning errors can cause blurred edges, uneven line spacing, or ghosting. These defects may also affect QR code readability.
A stable frame, accurate transmission system, and reliable material positioning help maintain consistent printhead movement and ink placement.
The Hanrun Paper UV-H9060 features an industrial-grade dual-screw drive system and a reinforced square-steel frame measuring 50 × 50 × 4 mm. Its adjustable printing platform offers a maximum lifting height of 50 cm, while its repeat positioning accuracy is specified at the 0.1 mm level. These structural and motion-control features support stable positioning across a range of printing applications.
The UV-H2513 uses a magnetic levitation linear motor drive system and offers a large 2,500 × 1,300 mm printing area. Its four-zone vacuum system allows different areas of the printing bed to hold substrates independently, helping reduce material movement and localized lifting during printing. This supports stable carriage movement and more consistent print positioning.
Have you ever encountered a situation where the print file and settings appear correct, yet the finished product still shows missing fine lines, uneven color, or incomplete QR code edges?
In such cases, printhead condition and the ink delivery system should be checked.
Unstable ink pressure, clogged nozzles, and air bubbles in the ink path can interrupt ink ejection. During continuous production, even a small number of malfunctioning nozzles may cause missing strokes in tiny text, broken lines, or gaps in detailed graphics.
Both the UV-H9060 and UV-H2513 feature dual negative-pressure ink supply systems, secondary ink tank heating, and an automatic printhead maintenance station.
The ink heating function helps maintain suitable ink temperature and viscosity, while the maintenance station supports printhead capping, moisture retention, and cleaning. Together with proper operating procedures and routine maintenance, these features help reduce the risk of ink starvation, missing nozzles, and other print defects, supporting more stable high-precision production.
Even when a design looks sharp on screen, the final printed and transferred result may vary depending on the substrate. Surface smoothness, coating properties, ink adhesion, and curing conditions can all influence print quality.
This is particularly important in UV DTF printing, where the compatibility of A film and B film plays a crucial role in image transfer, adhesion, and release performance.
A film serves as the carrier for the printed design. If its coating is unsuitable for the ink or printing process, ink may spread excessively, edges may lose definition, or the printed image may show inconsistent adhesion.
Hanrun Paper's A film features a controlled release force of 3–5 N/25 mm, with a standard deviation of less than 0.3 N/25 mm. It supports single-sheet peeling within 10 seconds, with a residual adhesive rate of less than 0.1%, helping improve release consistency and reduce adhesive residue.
B film must provide sufficient adhesion to secure the printed design during transfer while allowing the carrier to be removed smoothly afterward. An appropriate balance helps maintain image integrity and reduces the risk of incomplete transfer or unwanted residue.
Hanrun Paper's B film uses an acrylic pressure-sensitive adhesive system with an initial tack of 6–8 N/25 mm. This helps the film hold the printed design securely during application while supporting easy removal after transfer.
Choosing compatible UV DTF films can therefore help improve not only transfer reliability but also the preservation of fine lines, small text, and intricate graphic details.
High-precision UV printing requires more than suitable hardware and consumables. Regular maintenance and consistent operating conditions are also essential.
To help maintain print quality, operators should:
✅Check nozzle performance: Perform nozzle checks before production and address missing or deflected nozzles promptly.
✅Maintain the ink delivery system: Monitor negative pressure and inspect the ink path for potential air bubbles or supply issues.
✅Keep the printhead clean: Follow the manufacturer's recommended cleaning and capping procedures.
✅Verify print settings: Select appropriate resolution, pass count, curing settings, and print speed for the application.
✅Test material compatibility: Confirm that the substrate or UV DTF film is suitable for the ink and transfer process.
✅Verify QR code readability: Test printed QR codes with actual scanning devices under practical lighting and application conditions.
These practices help reduce avoidable defects and improve consistency across production batches.
Fine text, continuous lines, and scannable QR codes may appear to be small details, but reproducing them consistently requires coordination between printhead performance, motion control, ink delivery, material compatibility, and maintenance.

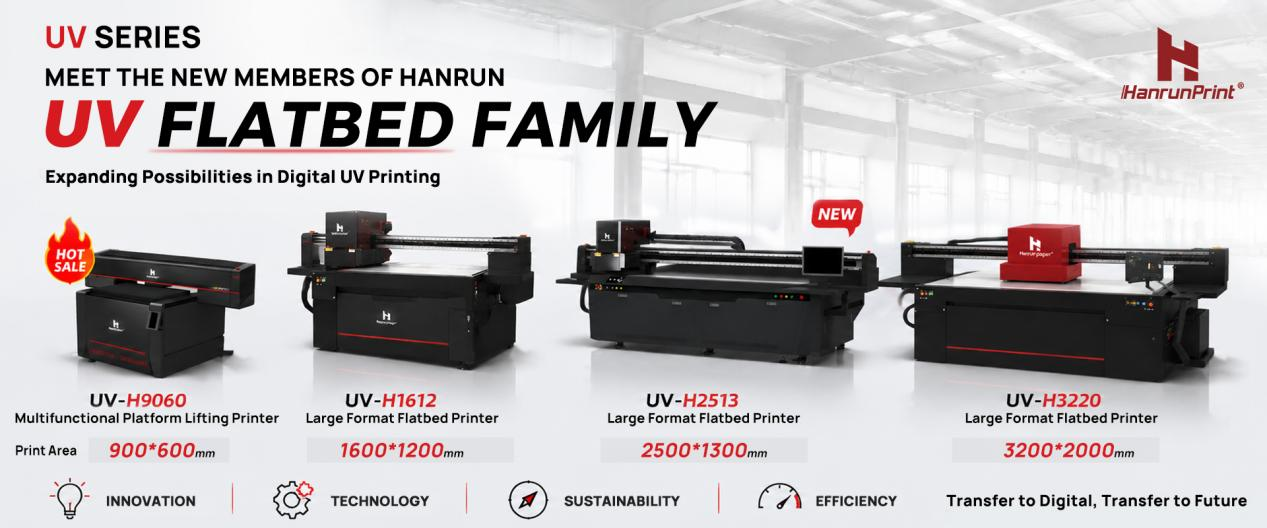

Hanrun Paper offers a range of UV printing solutions for different production requirements, including the UV-H9060 multifunctional UV flatbed printer with an adjustable-height platform, the UV-H2513 large-format UV flatbed printer, and the UV-H6090S UV printer.
Beyond printing equipment, we support customers with compatible consumables, application guidance, and technical assistance to help them select solutions suited to their materials and production workflows.
Our focus is not simply on what a printer can produce, but on helping businesses achieve consistent print quality, preserve intricate details, and improve production reliability.
Looking for a UV printer that can reproduce small text, fine lines, and high-density QR codes more accurately?
Contact Hanrun Paper to discuss your application requirements and arrange a sample printing test. Our team can help you evaluate suitable equipment, compatible materials, and an integrated solution tailored to your production needs.
Hanrun Paper — Your One-Stop Solution for Printing Equipment and Consumables.
